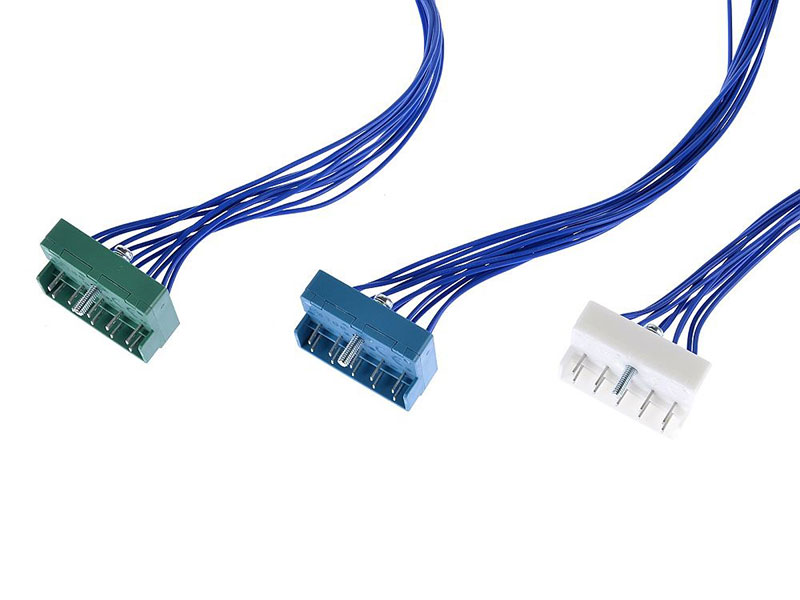

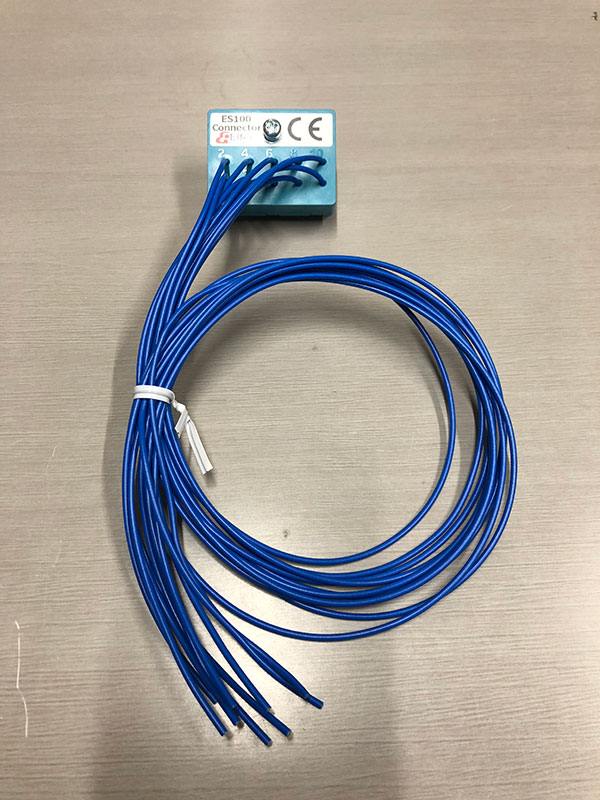

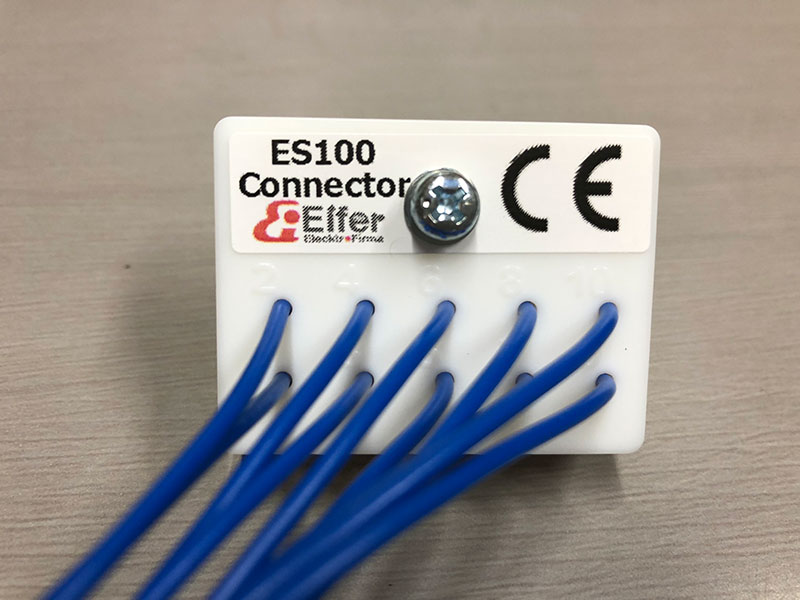

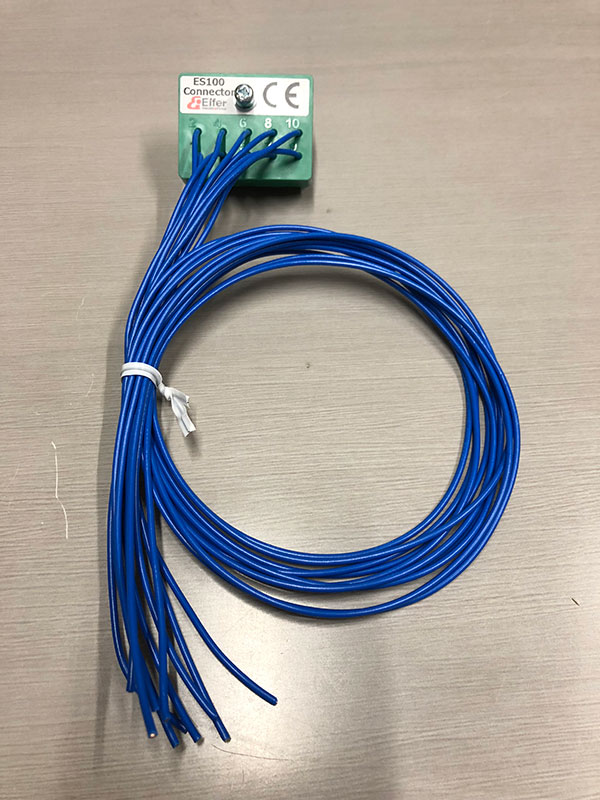

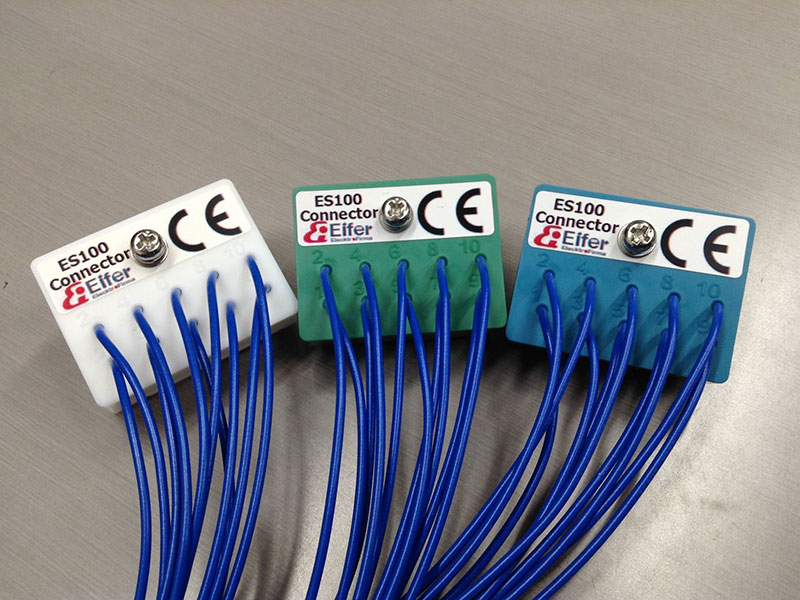

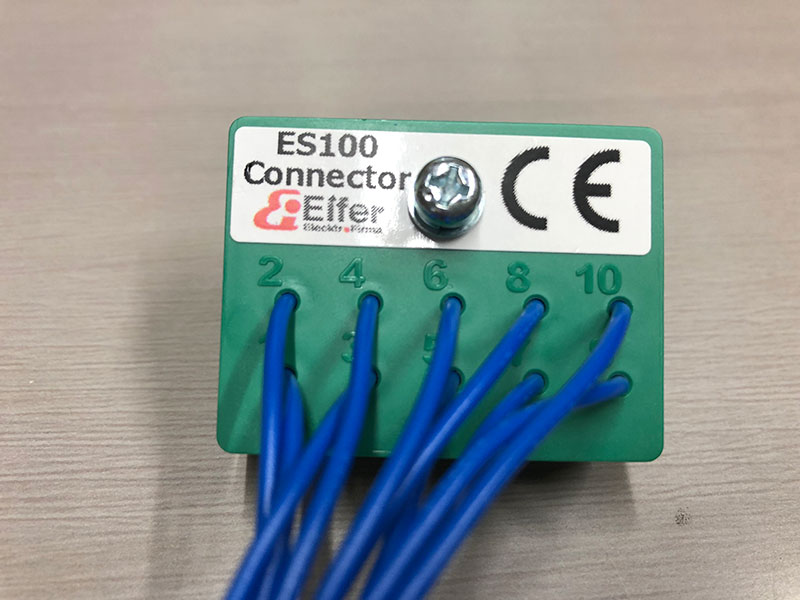

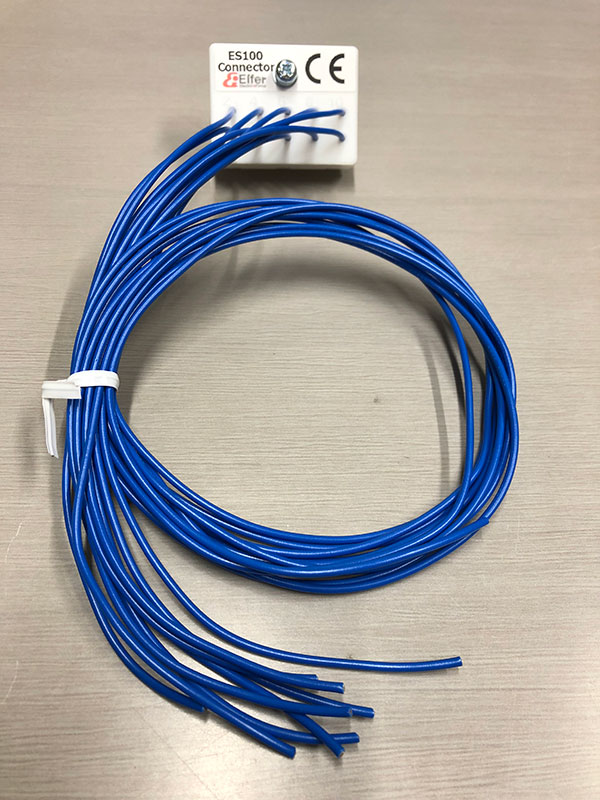

ES100connector for smart SIMATIC S5 migration
Der ES100 Connector ist ein Adapter um die SIMATIC S5 100U Steuerungen kosteneffizient mit minimalen Maschinenstillstand auf aktuelle Standardts Migration.
Ein großer Vorteil ist, dass die bestehende Verkabelung im Schaltschrank bis auf die der CPU absolut unberührt bleibt wodurch viele Fehlerquellen minimiert werden.
The ES100 Connector is an adapter to cost-effectively migration the SIMATIC S5 100U controllers to the latest standard with minimum machine downtime.
A big advantage is that the existing wiring in the control cabinet remains absolutely untouched except for the CPU, which minimizes many sources of error.
ES100コネクタは、SIMATIC S5 100Uコントローラを最小限の設備停止で最新機種へマイグレーションするためのアダプタです。
大きな利点は、制御盤内の既存配線に触れることなく作業を行えます。これは、多くの誤差要因を最小限に抑えます。
Anwendungsbeispiele
Example of use
使用例

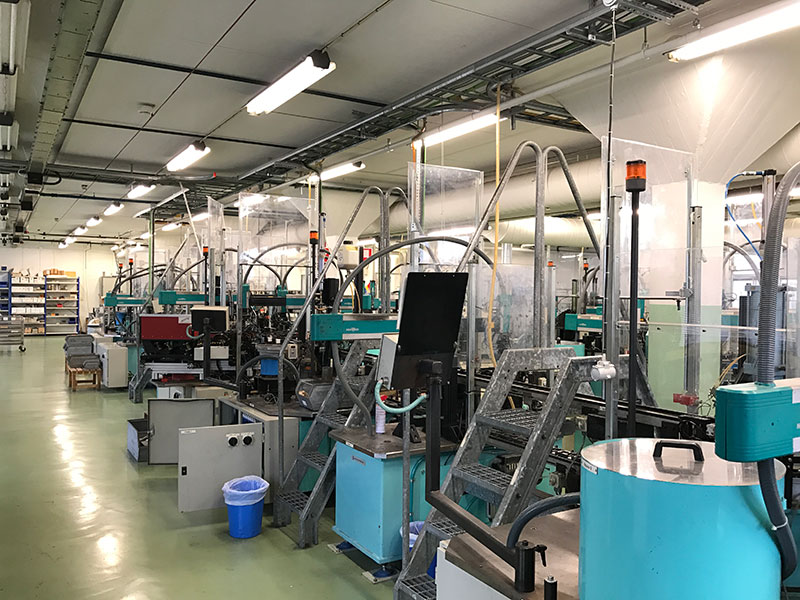

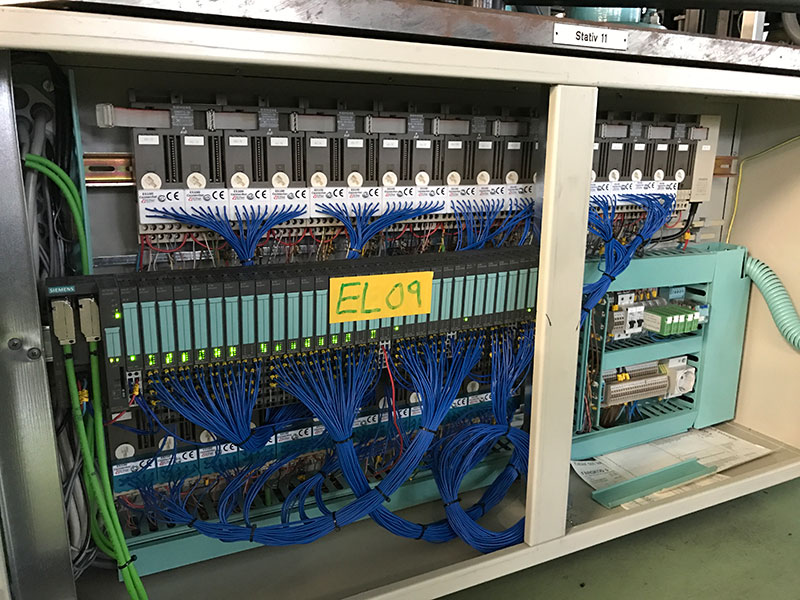

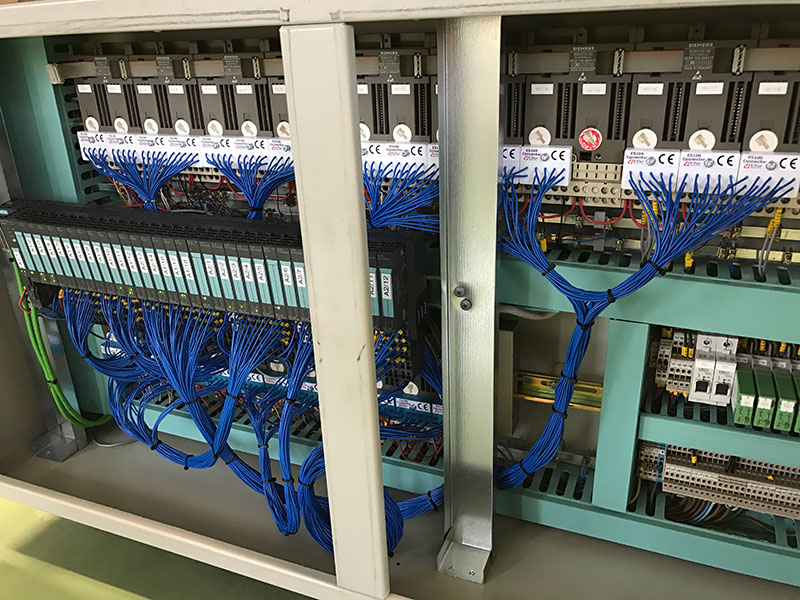

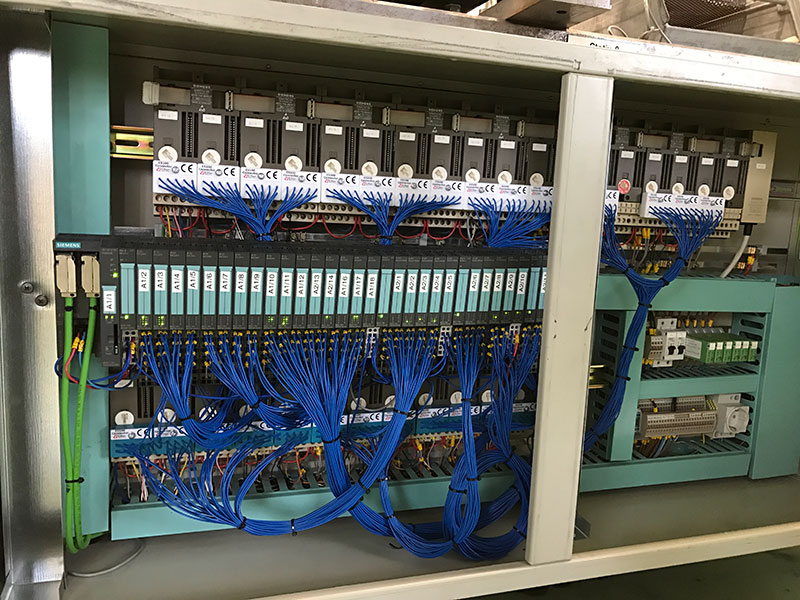

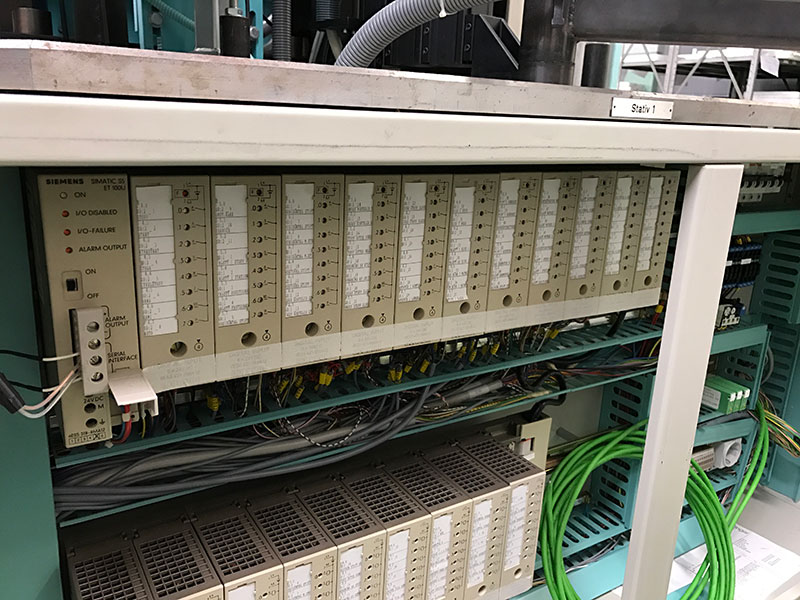

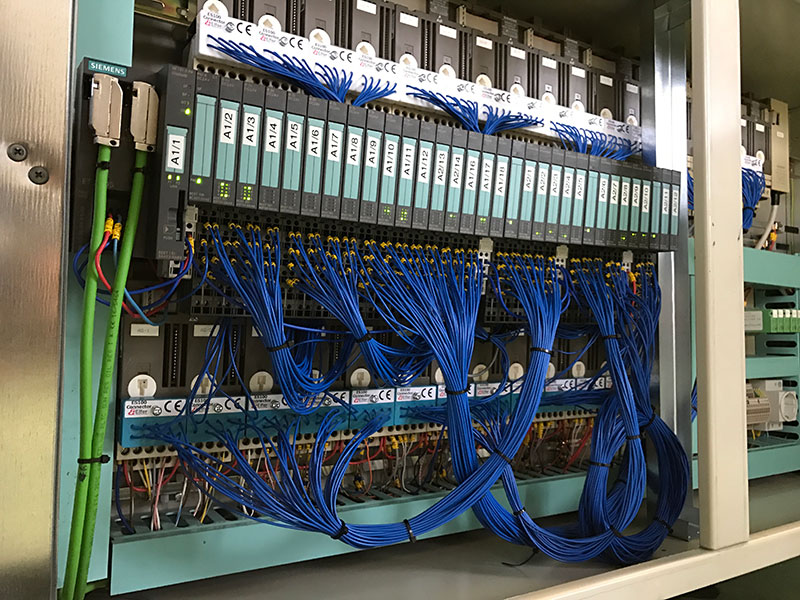

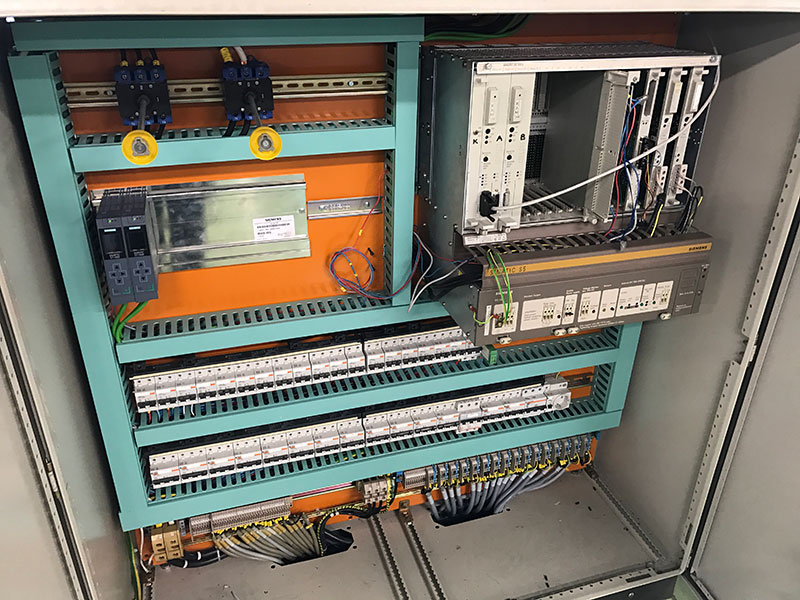

The system was controlled by two S5-135 CPUs and its input / output modules were installed on a per-controlpanel basis via an ET100 distributed network. The network had 12 stations of ET100. In addition, the time to stop production due to migration is limited. Updates need to be done smoothly. Laying Profinet cables in advance. The ES100 connector is pre-connected with the new ET200 module. As a result, "short-term facility shutdown" and "vertical production start" were achieved.
| Allowable Voltage | AC300V/DC60V |
|---|---|
| Allowable Current | 7A(Ambient temperature 30 degrees) |
| Wire type | UL1007 20AWG |
|
Purchase on e-bay |
Purchase on Eifer web site  Processed by PayPal |
Purchase on Direct bank transfer Payment_info (PDF) |
|---|---|---|---|
| 1pc for sample | Wiring length 0.5m / $60.00 |
----- | ----- |
| 10pcs in pack | Wiring length 0.5m / $300.00 Wiring length 1.0m / $325.00 Wiring length 3.0m / $360.00 |
Wiring length 0.5m / $250.00 Wiring length 1.0m / $270.00 Wiring length 3.0m / $300.00 |
Wiring length 0.5m / $237.50 Wiring length 1.0m / $256.50 Wiring length 3.0m / $285.00 |
| 100pcs in BOX | ----- |
Wiring length 0.5m / $2300.00 Wiring length 1.0m / $2484.00 Wiring length 3.0m / $2682.70 |
Wiring length 0.5m / $2185.00 Wiring length 1.0m / $2359.80 Wiring length 3.0m / $2548.60 |
| 1000pcs for resellers | ----- | ----- | Wiring length 0.5m / $19950.00 Wiring length 1.0m / $21546.00 Wiring length 3.0m / $23269.70 |
 |
Purchase on e-bay |

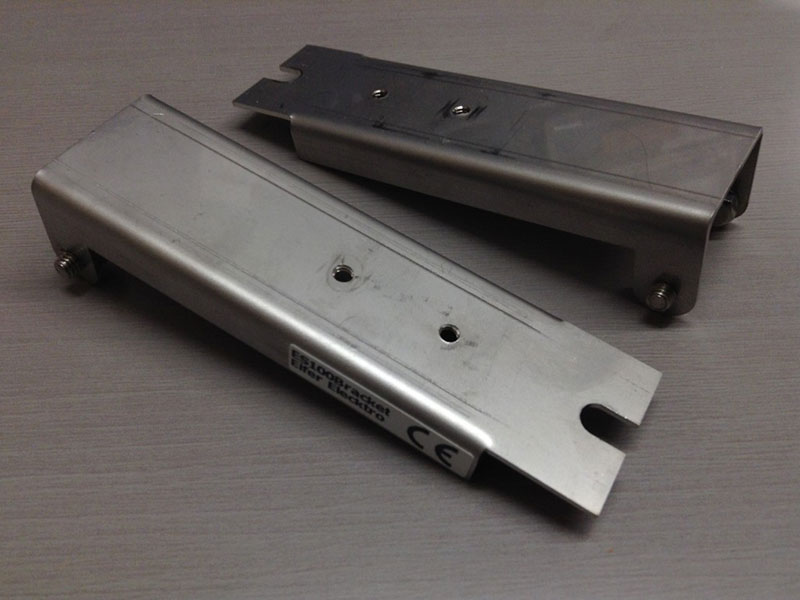

Purchase on Eifer web site | Free Download ES100 bracket Drawing |
|---|---|---|---|
| 2pcs in pak for sample | $90.00 |
$75.00 | ----- |
| More pieces | ----- | ----- | ES100Braket_Drawing(PDF) |
Shipping: FedEx. “Economy shipments IE” Shipping fee is included in the item price.
Ships from Japan within 3 weeks after payment is completed.
Item location: Japan
Ships to: Worldwide (Limited to FedEx delivery area)
Delivery: Varies for items shipped from an international location
Returns: 30 day returns. Buyer pays for return shipping
